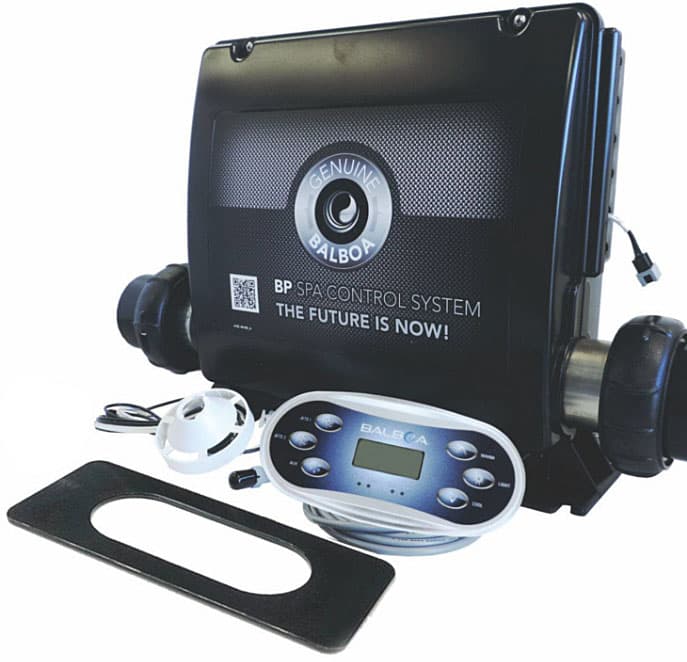

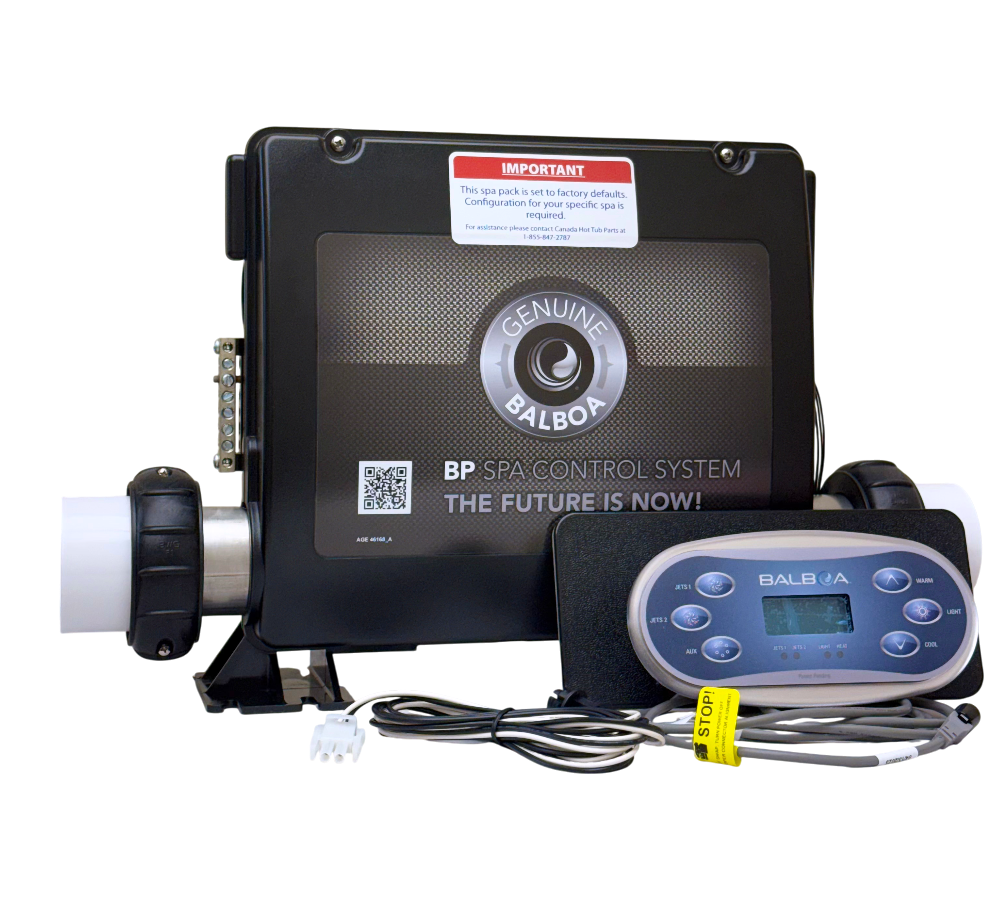

Balboa BP Series Kit: BP7, Pump Configuration: Pump 1 - 2sp, Pump 2 - 2sp or blower, Blower: Y, Circ: Y, Oz: Y, Heater: 5.5kW, Light: 12V, Topside: TP600*

**Balboa BP Kits include the control system with heater, topside control, Amp 4-prong style equipment cords, light wire, light bulb and light harness.** - Main Pump Circuit (1 or 2-Speed) - 110V or 220V 12A Max\* - Pump 2 / Blower Circuit (1 or 2-Speed) - 110V or 220V 12A Max\* - Pump 3 / Blower Circuit (1 or 2-Speed) - 110V or 220V 12A Max\* - Ozonator Circuit - 110V or 220V (Must match voltage of circulation pump circuit below. If you do not have a small circulation pump, you have the option to set this circuit to either voltage. If you have a small circulation pump, you must use an ozonator with the same voltage as your circulation pump.) - Light Circuit - 12 Volts - **\*\***Circulation Pump Circuit - 110V or 220V. Circ and Ozone must be same voltage - Audio/Video circuit, 110/220V, 2A Max (Constant Circuit) - Includes one 2-speed cord & two 1-speed cords. - 4.0 kW or 5.5 kW, 240V Flo-Thru heater with M7 technology - Program Setting from Compatible Balboa Topside Panel - Wifi Enabled (Balboa Wifi Module Sold Separately) - M8 Pump Saver Technology - Stainless steel heater housing - No Pressure Switch. Heater can be installed on suction or discharge side of pump - Quick Disconnect Heater Cable - Freeze protection, High-limit protection, Filtration mode, Economy Mode - Topside measures 7.1" X 3.5" **\*\***Most spas don't have a small circulation pump, instead, the main pump runs on low speed to heat and filter the water during set filtration cycles. If you are using a small circulation pump, the flow rate must be at least 25 gallons per minute. In other words, the circulation pump must be similar to a **Waterway Iron Might** or **Aquaflo Circmaster Pump** and require a minimum 1.5" size plumbing. **Pumps like the Waterway Tiny Might or Laing E10 Circulation Pump are too small and will not work with this control system.**
